Adiabatic Compression

2023-02-02 · PDF

Introduction

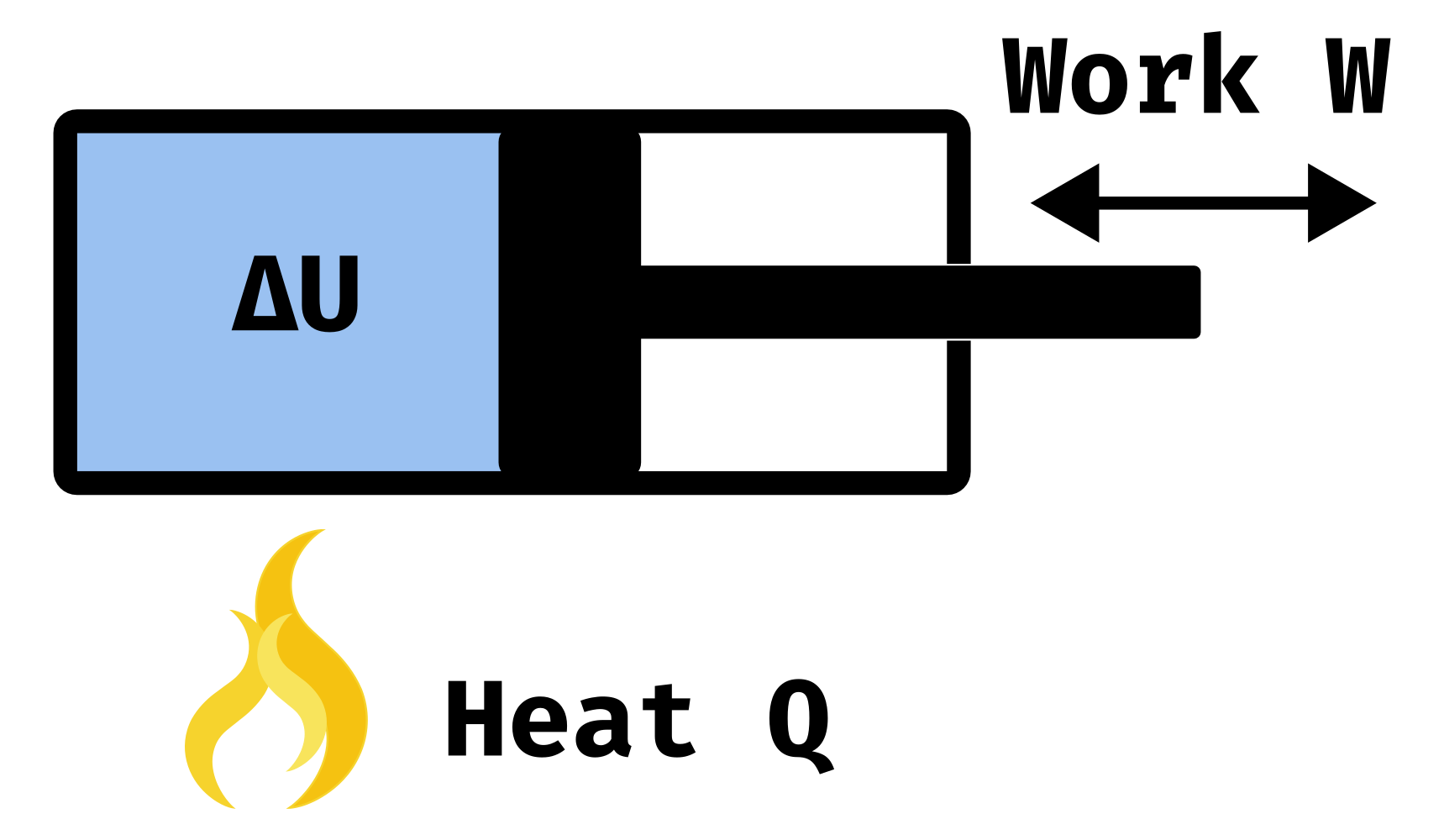

Let’s say we have some gas trapped inside a cylinder with a piston preventing it from leaking. Now if we want to change the inner energy of the gas we can - according to the first law of Thermodynamics - either add/remove heat from the system or do work on the gas or let the gas do work on the environment.

In a formula you can write the first law of Thermodynamics like this

$dU = dQ + dW$

where $dU$ is the change of the inner energy of the gas, $dQ$ is the amount of exchanged heat and $dW$ is the amount of work being done on the gas/ on the environment.

Adiabatic process

During an adiabatic process there is by definition no heat exchanged with the environment. This can e.g. be approximately true for a very fast change in volume where there is almost no time to allow heat flow during this process. For us this is very convenient as we can now write the first law like this

$dU = dW$

The inner energy $U$ for an ideal gas is defined by $U = \frac{f}{2} N k_B T$

where $f$ is the degree of freedom for the gas, $N$ the number of gas particles, $k_B$ the Boltzmann constant and $T$ the temperature of the gas. As $T$ is the only variable that might change during the adiabatic process we can write the change of inner energy as

$dU = \frac{f}{2} N k_B dT$

The work done on the gas/ on the environment is given by $dW = -p dV$

where $p$ is the pressure and $dV$ the change of volume during the process.

Combining those to the first equation we get $\frac{f}{2} N k_B dT = -p dV$

Now let’s introduce probably the most essential identity of Thermodynamics

$p V = N k_B T$

where $p$ is the pressure, $V$ the volume, $N$ the number of gas particles, $k_B$ the Boltzmann constant and $T$ the temperature of the gas.

We can now apply the differential operator to get $dp V + p dV = N k_B dT$ and insert this into our equation

$\frac{f}{2} (V dp + p dV) = -p dV$

$\left(\frac{f}{2}+1\right) p dV = -\frac{f}{2} V dp$

$\frac{f+2}{f} \frac{1}{V} dV = -\frac{1}{p} dp$

where one defines $\gamma = \frac{f+2}{f}$ as the adiabatic index.

Let’s integrate this equation on both sides

$\gamma \ln(V) = -\ln(p) + \text{const}$

Using $a \ln(x) = \ln(x^a)$ and $\ln(x) + \ln(y) = \ln(xy)$ we get

$p V^\gamma = \text{const}$

where $p$ is the pressure, $V$ the volume and $\gamma$ the adiabatic index of the gas.

Now by inserting $p = \frac{1}{V} N k_B T$ we get

$N k_B T V^{-1} V^\gamma = \text{const}$

$T V^{\gamma-1} = \text{const}$

where $T$ is the temperature, $V$ the volume and $\gamma$ the adiabatic index of the gas.

Example

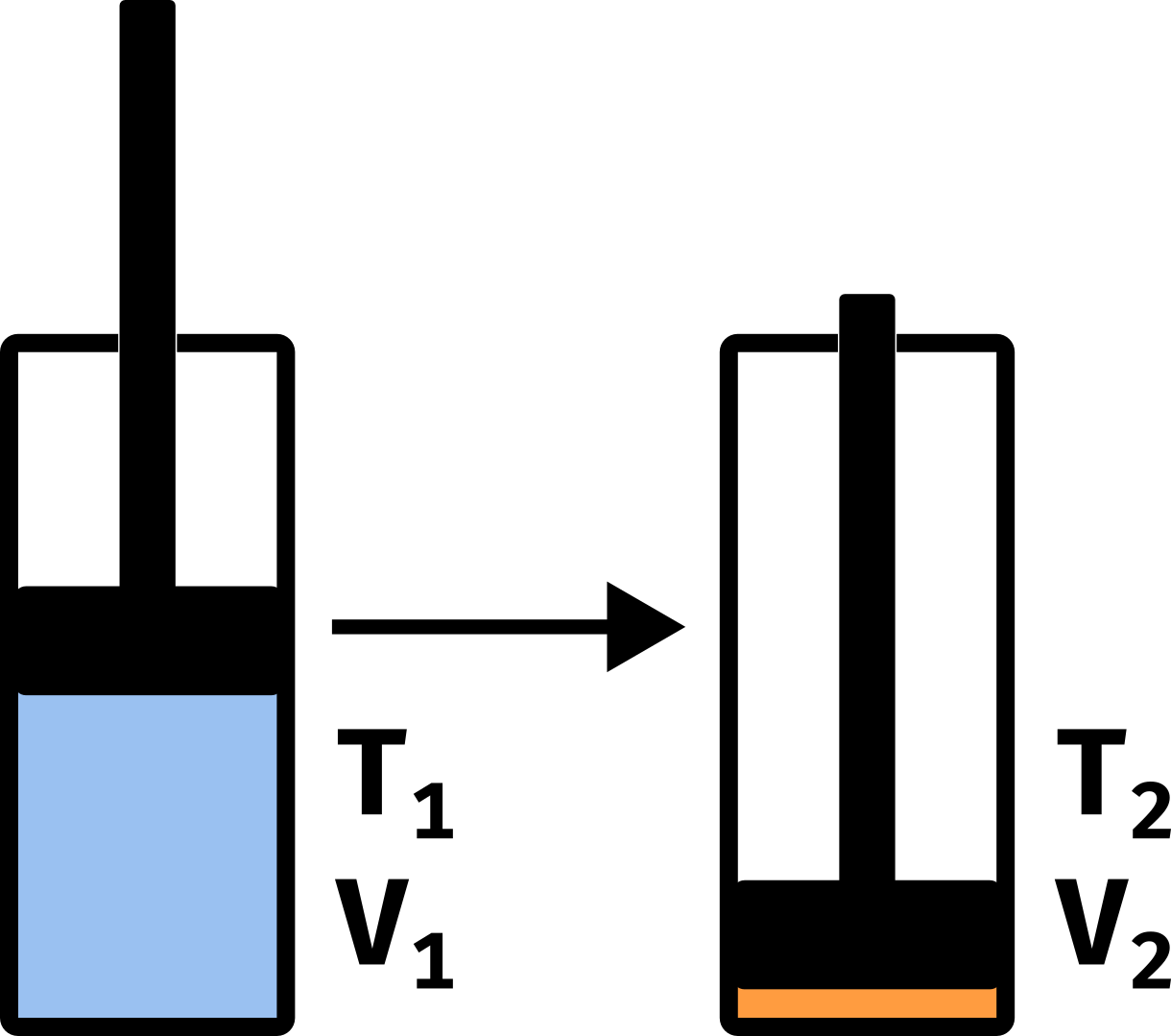

As you may know, the Diesel Engine does not rely on spark ignition - the fuel can ignite without a spark needed. The fuel-air vapor is instead compressed so quickly that the temperature increases significantly - enough to start the power stroke.

E.g. The 2019 Ford Super Duty has a compression ratio of $16.2:1$ . We derived that $T V^{\gamma-1} = \text{const}$ and so

$T_1 V_1^{\gamma-1} = T_2 V_2^{\gamma-1}$

where $T_1$ is the temperature before the compression and $T_2$ the temperature after the compression (same for volume). Let’s assume that the incoming air is about $T_1 = 300 K$ and that we deal only with a diatomic gas with $f = 5$ and therefore $\gamma = \frac{7}{5}$ .

The final temperature can then be calculated with

$T_2 = \left(\frac{V_1}{V_2}\right)^{\gamma-1} T_1$

Plugging in our values we get

$T_2 = \left(\frac{16.2}{1}\right)^{\frac{2}{5}} 300 K \approx 914 K = 641°C$
